AC/DC ÈÑÒÎ×ÍÈÊÈ ÏÈÒÀÍÈß
ÌÎÄÅËÜ ÍÎÌÅÐ ÎÏÈÑÀÍÈÅ
S-15-5 10001

+5V 3 A   99x97x35mm
S-15-12 10002 +12V 1.3A   99x97x35mm
S-15-24 10003 +24V 0.7A   99x97x35mm
S-25-5 10011 +5V 5A   99x97x35mm
S-25-12 10012 +12V 2.1A   99x97x35mm
S-25-15 10013 +15V 1.7A   99x97x35mm
S-25-24 10014 +24V 1.1A   99x97x35mm
S-35-5 10021 +5V 7A   129x98x38mm
S-35-12 10022 +12V 3A   129x98x38mm
S-35-15 10023 +15V 2.4A   129x98x38mm
S-35-24 10024 +24V 1.5A   129x98x38mm
S-40-5 10031 +5V 8A   129x98x38mm
S-40-12 10032 +12V 3.5A   129x98x38mm
S-40-15 10033 +15V 2.8A   129x98x38mm
S-40-24 10034 +24V 1.8A   129x98x38mm
S-50-5 10041 +5V 10A   150x97x38mm
S-50-12 10042 +12V 4.2A   150x97x38mm
S-50-15 10043 +15V 3.4A   150x97x38mm
S-50-24 10044 +24V 2.1A   150x97x38mm
S-60-5 10051 +5V 12A   159x97x38mm
S-60-12 10052 +12V 5A   159x97x38mm
S-60-15 10053 +15V 4A   159x97x38mm
S-60-24 10054 +24V 2.5A   159x97x38mm
S-100-3 10061 +3V 20A   199x98x38mm
S-100-5 10062 +5V 20A   199x98x38mm
S-100-7.5 10063 +7.5V 13.6A   199x98x38mm
S-100-10 10064 +10V 10A   199x98x38mm
S-100-12 10065 +12V 8.5A   199x98x38mm
S-100-15 10066 +15V 6.7A   199x98x38mm
S-100-24 10067 +24V 4.5A   199x98x38mm
S-100-27 10068 +27V 3.7A    199x98x38mm
S-100-48 10069 +48V 2A   199x98x38mm
S-100F-5 10071 +5V 20A   199x98x38mm
S-100F-7.5 10072 +7.5V 13.5A   199x98x38mm
S-100F-12 10073 +12V 8.5A   199x98x38mm
S-100F-15 10074 +15V 6.7A   199x98x38mm
S-100F-24 10075 +24V 4.5A   199x98x38mm
S-100F-48 10076 +48V 2A   199x98x38mm
S-150-5 10081 +5V 30A   199x110x50mm
S-150-7.5 10082 +7.5V 20A   199x110x50mm
S-150-9 10083 +9V 16.7A    199x110x50mm
S-150-12 10084 +12V 12.5A    199x110x50mm
S-150-15 10085 +15V 10A    199x110x50mm
S-150-24 10086 +24V 6.5A    199x110x50mm
S-150-48 10087 +48V 3.2A    199x110x50mm
S-200-5 10091 +5V 40A   155x150x86mm
S-200-12 10092 +12V 16.5A   155x150x86mm
S-200-15 10093 +15V 13.3A   155x150x86mm
S-200-24 10094 +24V 8.5A   155x150x86mm
S-200-27 10095 +27V 7.4A   155x150x86mm
S-240-5 10101 +5V 40A   205x93x65mm
S-240-7.5 10102 +7.5V 30A   205x93x65mm
S-240-12 10103 +12V 18A   205x93x65mm
S-240-15 10104 +15V 15A   205x93x65mm
S-240-24 10105 +24V 10A   205x93x65mm
S-240-30 10106 +30V 8A   205x93x65mm
S-240-48 10107 +48V 5A   205x93x65mm
S-320-5 10111 +5V 50A   230x115x50mm
S-320-12 10112 +12V 25A   230x115x50mm
S-320-7.5 10112 +7.5V 36A   230x115x50mm
S-320-13.5 10114 +13.5V 22A   230x115x50mm
S-320-15 10115 +15V 20A   230x115x50mm
S-320-24 10116 +24V 12.5A   230x115x50mm
S-320-27 10117 +27V 11A   230x115x50mm
S-320-48 10118 +48V 6.5A   230x115x50mm
SP-300-5 10121 +5V 50A   230x115x50mm
SP-300-7.5 10122 +7.5V 34A   230x115x50mm
SP-300-12 10123 +12V 24A   230x115x50mm
SP-300-13.5 10124 +13.5V 21A   230x115x50mm
SP-300-15 10125 +15V 19A   230x115x50mm
SP-300-24 10126 +24V 12.5A   230x115x50mm
SP-300-27 10127 +27V 11A   230x115x50mm
SP-300-48 10128 +48V 6.25A   230x115x50mm
SP-500-12 10131 +12V 40A   185x120x92mm
SP-500-13.5 10132 +13.5V 36A   185x120x92mm
SP-500-15 10133 +15V 32A   185x120x92mm
SP-500-24 10134 +24V 20A   185x120x92mm
SP-500-27 10135 +27V 18A   185x120x92mm
SP-500-48 10136 +48V 10A   155x150x86mm
PS-280-13.5 10141 +13.5V 20A   155x150x86mm
PS-280-27 10142 +27V 10A   155x150x86mm
PSP-300-12 10151 +12V 25A   185x120x92mm
PSP-300-13.5 10152 +13.5V 22A   185x120x92mm
PSP-300-24 10153 +24V 12.5A   185x120x92mm
PSP-300-27 10154 +27V 11A   185x120x92mm
PSP-300-48 10155 +48V 6.5A   185x120x92mm
D-30A 10161 +5V 4A +12V 1A   129x98x38mm
D-30B 10162 +5V 2.2A +24V 1A   129x98x38mm
D-50A 10171 +5V 6A +12V 2A    159x97x38mm
D-50B 10172 +5V 6A +24V 1A   159x97x38mm
D-60A 10181 +5V 4A +12V 3A   159x97x38mm
D-60B 10182 +5V 3A +24V 1.8A   159x97x38mm
D-100A 10191 +5V 10A +12V 4A   159x97x38mm
D-100B 10192 +5V 6A +24V 3A   159x97x38mm
SDD-100-7.5 10201 +7.5V 11.5A & D/D +5V 3A   199x98x38mm
SDD-100-12 10202 +12V 7.2A & D/D +5V 3A   199x98x38mm
SDD-100-24 10203 +24V 3.7A & D/D +5V 3A   199x98x38mm

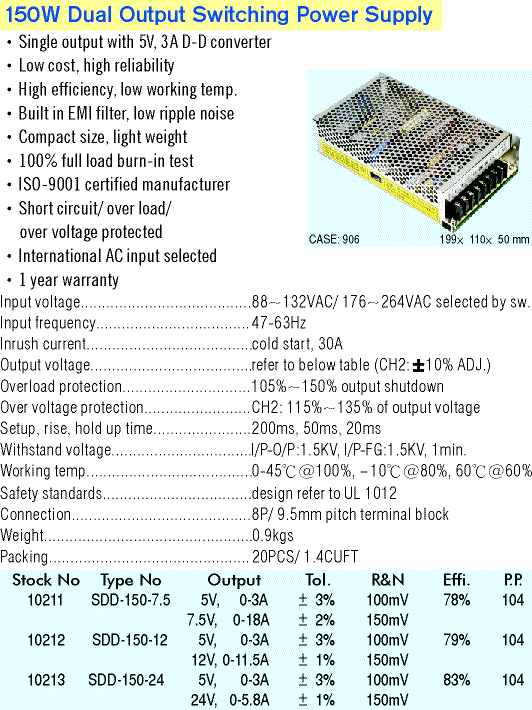

SDD-150-7.5 10211 +7.5V 18A & D-D +5V 3A   199x110x50mm
SDD-150-12 10212 +12V 11.5A & D/D +5V 3A   199x110x50mm
SDD-150-24 10213 +24V 5.8A & D/D +5V 3A   199x110x50mm
D-120A 10221 +5V 12A +12V 5A   199x110x50mm
D-120B 10222 +5V 6A +24V 4A   199x110x50mm
ID-50A 10231 +5V 6A +5V 2A  159x97x38mm
ID-50B 10232 +13.5V 1.8A +13.5V 1.8A   159x97x38mm
ID-50C 10233 +27V 0.9A +27V 0.9A 159x97x38mm
ID-50D 10234 +5V 5A +13.5V 1.7A 159x97x38mm
ADD-50A 10241 +5V 3A +13V 2.5A   159x97x38mm
ADD-50B 10242 +5V 3A +26V 1.5A   159x97x38mm
AD-150A 10251 +27V 5A +26.5V 0.7A   199x110x50mm
AD-150B 10252 +13.5V 10A +13V 0.5A   199x110x50mm
T-30A 10261 +5V 3A +12V 1A -5V 0.5A   129x98x38mm
T-30B 10262 +5V 3A +12V 1A -12V 0.5A   129x98x38mm
T-40A 10271 +5V 3A +12V 2A -5V 0.5A   129x98x38mm
T-40B 10272 +5V 3A +12V 2A -12V 0.5A   129x98x38mm
T-40C 10273 +5V 3A +15V 1.5A -15V 0.5 129x98x38mm
T-50A 10281 +5V 7A +12V 1A -5V 1A   159x97x38mm
T-50B 10282 +5V 5A +12V 1A -12V 1A   159x97x38mm
T-50C 10283 +5V 4A +15V 1A -15V 1A  159x97x38mm
T-50D 10284 +5V 3A +12V 1A +24V 1A   159x97x38mm
T-60A 10291 +5V 5A +12V 2.5A -5V 0.5A   159x97x38mm
T-60B 10292 +5V 5A +12V 2.5A -12V 0.5A   159x97x38mm
T-60C 10293 +5V 5A +15V 2A -15V 0.5A   159x97x38mm
T-80D 10301 +5V 4A +12V 2A +24V 1.5A   199x98x38mm
T-100C 10311 +5V 10A +15V 2.5A -15V 1A   199x110x50mm
T-100D 10312 +5V 6A +12V 2A +24V 2A   199x110x50mm
Q-60 10331 +5V 5.5A +12V 2A -5V 0.5A -12V 0.5A  159x97x38mm
Q-100H 10342 +5V 13A +12V 2A -5V 1A -12V 1A   199x110x50mm
Q-120B 10351 +5V 11A +12V 4A -5V 1A -12V 1A   199x110x50mm
Q-120C 10352 +5V 10A +15V 3.5A -5V 1A -15V 1A   199x110x50mm
Q-120D 10353 +5V 8A +12V 2A +24V 2A -12V 1A   199x110x50mm
Q-180 10361 +5V 8A +12V 2A +24V 4A -12V 1A   155x150x86mm
