ÓÍÈÂÅÐÑÀËÜÍÛÅ ÏÐÎÃÐÀÌÌÀÒÎÐÛ ALL-11

• The ALL-11P2 supports programming just about every type of device with a programmable memory or configuration including EPROM, EEPROM, FLASH, PLD/CPLD/FPGA, microcontrollers, BPROM, Serial PROM, and much more.

• The ALL-11P2 consists of a universal base and exchangeable PACK options. PACKs range from general purpose universal PACKs to multiple sockets gang programming PACKs.

• The ALL-11P2 includes a high speed CPU and expandable memory buffer to meet programming needs today and into the future. Standard programmer memory is 1Mbit and is expandable in the field to up to 128M bytes. Even with only 1Mbit of memory installed in the programmer a cache system allows much larger EPROM and FLASH to be programmed.

• A high speed serial port interface (up to 115K baud) or high speed parallel port interface ( up to 130K byte/sec ) connects the programmer to any desktop or laptop PC running Windows Windows 95/98/NT. The software interface is a native Windows 95/98/NT application.

• The ALL-11P2 features our new SMD SIMM module pin driver circuits which provide extremely accurate programming waveforms, high speed, high reliability and a compact form factor. ALL-11P2 pin drivers are fully programmable to support programming and testing of standard and low voltage device. The ALL-11P2 is powerful enough for field engineering work.

Features

ALL-11P2 SUPPORTS OVER 5000 IC

• The ALL-11P2 supports an expansive array of EPROM, EEPROM, FLASH, Serial PROM, BPROM, MPU/MCU/DSP, microcontrollers from Atmel, Dallas, Hitachi, Intel, Microchip, Mitsubishi, Motorola, NEC, Philips, TI, Toshiba, WSI, Zilog and others.

• The ALL-11P2 supports PAL, GAL, PEEL, EPLD, EPL, FPGA, CPLD from Altera, AMD, Atmel, Lattice, Lucent Technologies (AT & T), Motorola, TI, Xilinx, etc... The ALL-11P2 can perform functional vector tests on programmable logic devices as fast as 4ns.

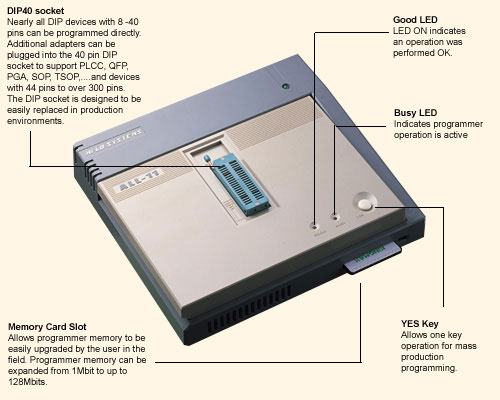

• Devices supported range from 8 pins to over 300 pins. Nearly all devices with 8-40 pins can be programmed directly by the ALL11P2's 40 pin DIP socket. Adapters and converters are available to support nearly every type of IC package including PLCC, SOP, TSOP, QFP, TQFP, PGA, SOJ, and much more. Gang programming options are available for E/EPROM, FLASH, Serial PROM, PLD/CPLD, and microcontrollers.

Applications

ALL-11P2 IS EASY TO OPERATE

• The ALL-11P2's new Windows interface makes programming simple. Choose a device manufacturer and device type from a menu. Read in a file from a master device or load a file from the PC. Press 'B' to check if the device is blank, press 'P' to program the device, or press 'A' to use the Auto function. The Auto function displays all available functions to perform on the device (i.e. blank check, program, verify, program security, protect sectors, etc...). Simply check off the operations you want to perform. After all desired functions are selected the programmer can be operated by a single external key on the programmer.

• The ALL-11P2 can process all popular file formats including Intel HEX, Motorola S-records, binary ,.JEDEC fuse map (.JED), Altera POF, and others. A full screen editor is provided to view or edit any address of the programming buffer in binary, ASCII, or Logic Fuse Map formats.

ALL-11P2 IS RELIABLE

• The ALL-11P2 is a sixth generation universal programmer product. We have over 10 years experience designing universal programmers and we have an installed base of over 120,000 universal programmers. Close relations with all major IC manufacturers keep our engineers well-informed of all the latest programming algorithm releases. Our algorithms have been tested and approved by AMD, Atmel, ICT,Macronix, Motorola, National Semiconductor, WSI and others. Over current protection circuits and reverse insertion detection protect your IC and the ALL-11P2. A self diagnostic test is included to verify correct operation of the hardware and to meet calibration requirements. The ALL-11P2 meets CE requirements and has been approved by TUV. Every ALL-11P2 is backed by a 2 year hardware warranty.

ALL-11P2 BACKED BY WORLDWIDE SERVICE AND SUPPORT

• Over 50 distributors in over 35 countries support the ALL-11P2. New software updates are available by BBS, WEB, or E-mail.

• Over 30 engineers are available to answer technical support questions and add support for new device types. New device support is added weekly to keep up with all of your programming requirements.

Specifications

Electronic Specifications

• Includes high speed CPU and 1Mbit memory buffer as standard.

• A memory card slot accepts SRAM cards to expand the memory buffer from 1Mbit to higher densities up to 128M bytes.( for a serial port used only )

• High Speed and compact pin driver circuits to support programming and testing of standard and low voltage IC.High speed serial port interface (up to 115K baud) works on COM1, COM 2, COM3 or COM4.

• High Speed parallel port interface (up TO 130K bytes/sec) work on LPT1, LPT2, LPT3 in ECP or EPP mode.

• Load file, Read Master, Program, Verify, Auto, ID Check, Checksum, Blank Check, Erase, Secure, Protect/Unprotect, Edit, File Transfer, Function Configuration, Self Test.

Electrical Requirements

• Operating Voltage : 90 - 245 VAC

• Frequency Range : 47-67 Hz

• Power Consumption : 5V max. 1A  12V max. 1.5A

Physical and Environmental Specifications

• Dimensions : 245 mm x 220 mm x 50 mm

• Weight : 2 kg

• Temperature : 0 - 40°C (50 - 105°F)

• Safety Standards : approved by TUV to meet CE requirments

Host System Requirements

• Any IBM or IBM compatible PC with 486, Pentium or higher CPU come with a minimum 32 MB extended memory.

• At least one serial port or one parallel port.

• 5 MB of free hard disk space Windows95/98/NT operating system.

• CD-R drive.
